Park+Ride buildings, Antwerp (B).

Public space for a sustainable transition.

The City of Antwerp wants to give mobility a more sustainable place in the city and the wider region. The development of a number of Park + Ride buildings is a crucial part of this initiative. As well as improving mobility, the city also seeks to lend a face to the access point to the Antwerp area. Consequently, the Park+Ride buildings are also public gateways through which people enter the region. The Park+Ride commission involves various forms oftransition, on different scales. These transcend the space of the Park + Ride in itself but do need to be reflected – afforded an identity – within it.

At the level of the various sites, the physical switchover between an individual (car) and the more collective traffic modes (tram, bus and bike-share) are of crucial importance. In this sense, the Park+Ride building literally embodies the efforts to make the mobility streams that enter and exit the city of Antwerp more sustainable and collective. In other words, these buildings and the accompanying facilities can be understood as ‘transit’ environments; like airports, train stations and metro lines, where the comfort, legibility and safety of the transfer plays a primary role. These are the critical factors for ensuring that this transition is a success, and that improving the sustainability of mobility is aligned with the needs of the traveller, visitor or resident within the metropolitan network. The meticulous intersection of this network is the core specification for the Park+Ride facility.

Three Park+Ride buildings are constructed: Luchtbal, Linkeroever and Merksem. These provide room for 1,800, 1,500 and 680 parking spaces respectively, and represent a combined budget of c. €56,000,000. The architecture of the buildings is dictated by their structure, and the way in which this encloses collective, green outside spaces. There are no facades. Instead, the very neat, hybrid structure – with concrete columns and timber beams (for a more sustainable material use) – is emphasised. The centrally located patios bring daylight into the structures and serve to orientate the various traffic streams.

Read
more
less
Details
Open
Close
Client
Lantis
Location
Antwerp, (B).
Year
2016
 –
2021
 –
...
Size
51.000 m²
Status
Built
Team
Koen Drossaert
Lorie Elsen
David Jacobs
David Mathyssen
Jeroen Peeraer
Maura Pinto
Ibiza Roca Mosher
Gabriele Rovati
Esther Vandamme
Sophie Van Hulle
Awards
Partners

Sweco, ROTS, Atlas

Visualisation
PRLA-1
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
5
No items found.
0:00
3:42

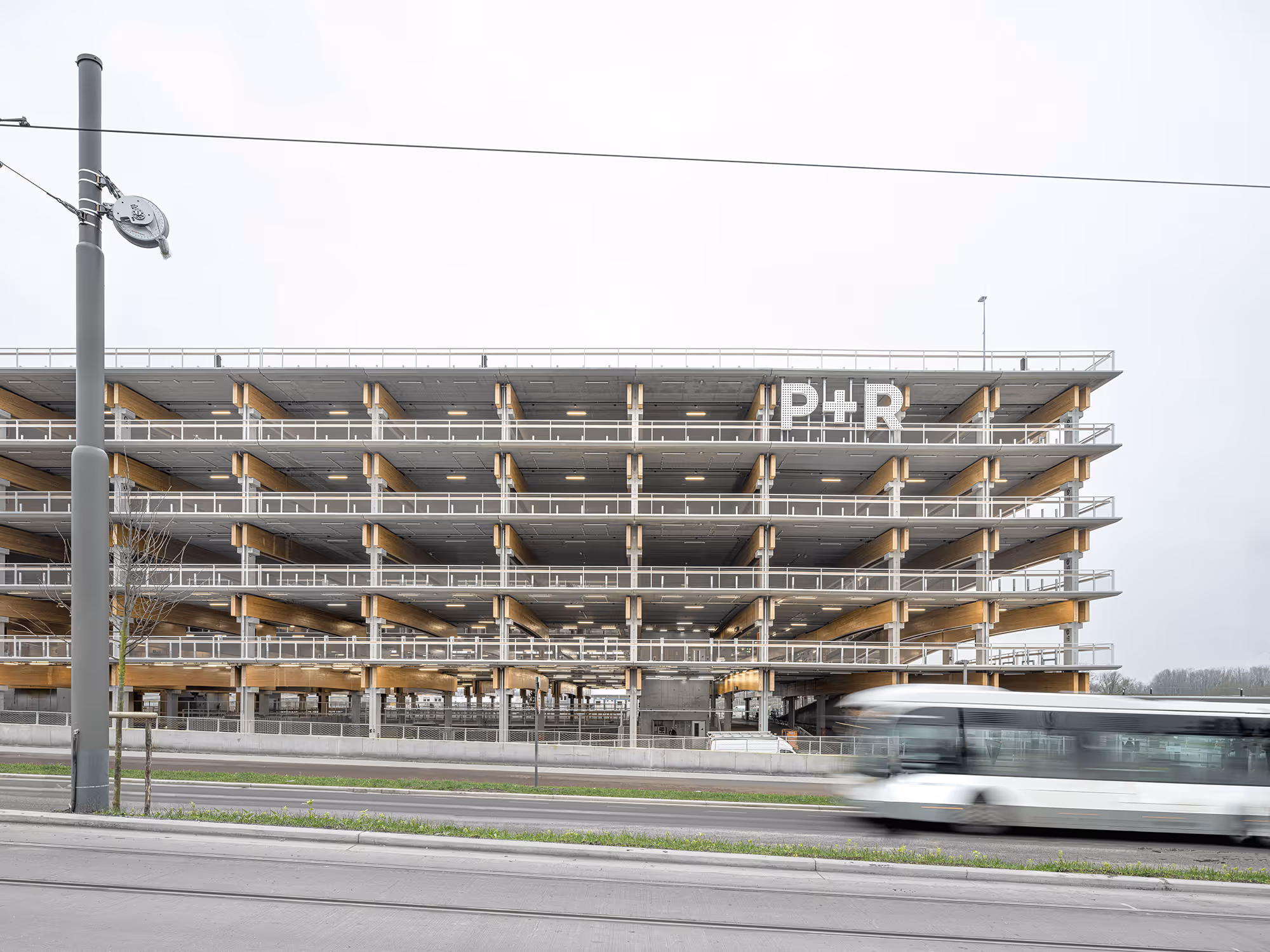

P+R Linkeroever
P+R Linkeroever
7
10
0:00
3:42
The 3 P+R buildings, on the outskirts of the city, are connected to the tram network to the center.
PRLA-2
mute
Dempen
Watch
Listen
This is some text inside of a div block.
7
11
No items found.
0:00
3:42
P+R Luchtbal
P+R Luchtbal
2
5

The P+R buildings are public gateways to Antwerp's city center and give an identity to the transition between city and hinterland.

The buildings share a design approach where the architecture follows from the structure, but were each of them designed for the specific context and its needs.

0:00
3:42
PRLA-3
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
7
No items found.
0:00
3:42
P+R Linkeroever | At the back of the picture, where the bike path approaches the tram stop, an extra high ground floor makes space for special programming, such as a weekly market.
P+R Linkeroever | At the back of the picture, where the bike path approaches the tram stop, an extra high ground floor makes space for special programming, such as a weekly market.
9
11

The junction of traffic modes provides special spatial moments. These give the buildings a distinct public character and support orientation.

0:00
3:42
PRLA-4
mute
Dempen
Watch
Listen
This is some text inside of a div block.
6
9
No items found.
0:00
3:42
P+R Luchtbal
P+R Luchtbal
0:00
3:42
PRLA-9
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
6
No items found.
0:00
3:42
Where the P+R Luchtbal is connected to the tram station, a sculptural staircase highlights apublic moment.
Where the P+R Luchtbal is connected to the tram station, a sculptural staircase highlights apublic moment.
8
11
0:00
3:42
PRLA slider-1
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
6
P+R Linkeroever | Ground floor plan
P+R Linkeroever | Typical floor plan
P+R Linkeroever | Section
No items found.
0:00
3:42
0:00
3:42
PRLA slider-2
mute
Dempen
Watch
Listen
This is some text inside of a div block.
8
12
P+R Luchtbal | Ground floor plan
P+R Luchtbal | Typical floor plan
P+R Luchtbal | Section
No items found.
0:00
3:42
0:00
3:42
PRLA-5
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
3
No items found.
0:00
3:42
5
10
0:00
3:42
Pedestrians do not circulate on the side of the internal roadways, but on the side of the patios, in a gallery provided for this purpose. This is much more pleasant and safer than what is common in parking infrastructure.
PRLA-6
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
7
No items found.
0:00
3:42
The patios bring daylight, cross sectional views and draw the landscape into the building.
The patios bring daylight, cross sectional views and draw the landscape into the building.
9
11
0:00
3:42
In addition, the building also offers views of the surrounding landscape.
PRLA-7
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
5
No items found.
0:00
3:42
7
9
0:00
3:42
Construction drawing with the various building elements.
PRLA-8
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
6

The structure is the architecture. It consists of concrete columns and double laminated beams on which a concrete deck rests.

The structural node is designed in a circular way and provides a readable scale to the buildings.

No items found.
0:00
3:42
8
12
0:00
3:42
PRLA slider
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
6
No items found.
0:00
3:42
0:00
3:42
PRLA-10
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
6
No items found.
0:00
3:42
The buildings also serve as a public space. For example, Dakkan organized the highest flea market “on the roof” in P+R Linkeroever.
The buildings also serve as a public space. For example, Dakkan organized the highest flea market “on the roof” in P+R Linkeroever.
