Zegel, Antwerp (B).

Corner makes room.

The building is situated on the corner of Zegelstraat and Turnhoutsebaan, the latter being a major access road to the city of Antwerp. It comprises a mixed programme with offices for district police, residences and the entrance to a metro station. The metro station greatly reduces the possibility of bringing down loads on the corner of the site, a fact which defines the project’s tectonic form.

The plinth – of the same height as the neighboring buildings – comprises a Vierendeel beam which spans the metrostation and distributes the load of the tower volume located on the corner. The facade is a light shell made of aluminium which tempers the support structure’s exuberant character while lending the building a relaxed and almost classical articulation.

The entrances to the metro station, and the district police station are located beneath and in-between the Vierendeel beam, while the residences are situated in the superstructure.

Read
more
less
Details
Open
Close
Client
AG Vespa
Location
Zegelstraat-Turnhoutsebaan, Antwerp, (B).
Year
2009
 –
2018
 –
...
Size
1.500 m²
Status
Built
Team
Hans Caarls
Koen Drossaert
David Mathyssen
Awards
Photography
Visualisation
PKZB-4
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
8
No items found.
0:00
3:42
The building is situated on the corner of Zegelstraat and Turnhoutsebaan, the latter being a major access road to the city of Antwerp.
The building is situated on the corner of Zegelstraat and Turnhoutsebaan, the latter being a major access road to the city of Antwerp.
9
12
0:00
3:42

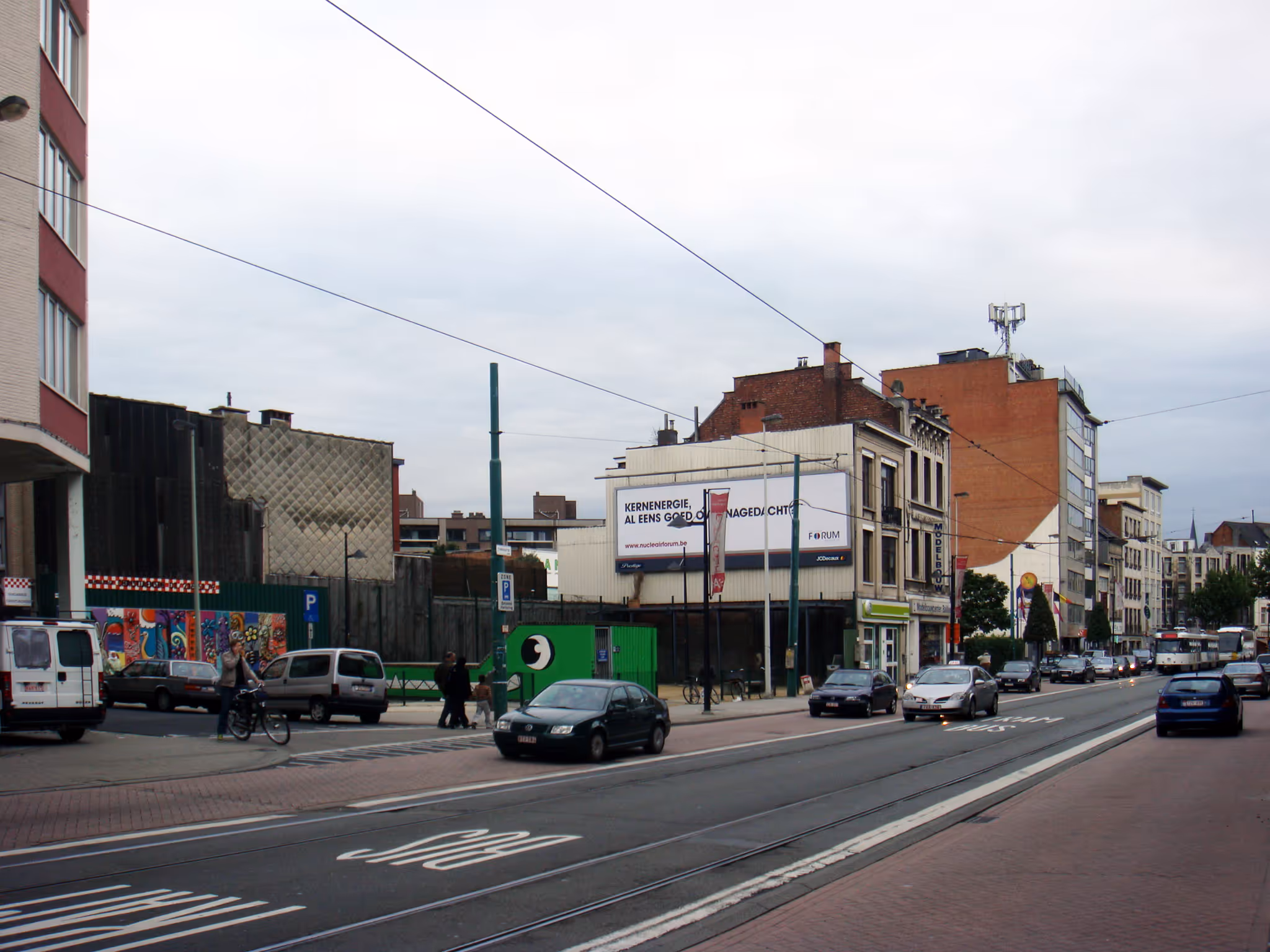

For a long time, the site formed an undeveloped corner, above the unused subway station.
PKZB-5
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
5

A special structure for a special context:

The metro station greatly reduces the possibility of bringing down loads on the corner of the site, a fact which defines the project’s tectonic form.

No items found.
0:00
3:42
7
10

0:00
3:42
PKZB plans
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
7
Plan ground floor
Plan first floor
Plan second floor
Plan fourth floor
Section
No items found.
0:00
3:42
9
11
0:00
3:42
Study model of the structure and skin of the facade.
PKZB-6
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
5
No items found.
0:00
3:42
The choice of materials supports the articulation and functionality of the building.
The choice of materials supports the articulation and functionality of the building.
8
10
0:00
3:42
The entrance to the metro station, the entrance to the apartments, and the entrance to the police station are all under the roof.
PKZB-7
mute
Dempen
Watch
Listen
This is some text inside of a div block.
8
11
No items found.
0:00
3:42
In the Zegelstraat, the building seeks a connection to the more classic residential street.
In the Zegelstraat, the building seeks a connection to the more classic residential street.
4
6
0:00
3:42
PKZB-10
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
7
No items found.
0:00
3:42
9
11

The apartments are varied in organization and have an open character. The structure helps to determine the image of the interiors.

0:00
3:42
PKZB-8
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
6
No items found.
0:00
3:42
8
11
0:00
3:42
The central staircase core is robustly materialized but very finely detailed. A dormer provides deep incoming light.
PKZB-9
Read
Project Zegel at the Venice Biennale.
mute
Dempen
Watch
Project Zegel at the Venice Biennale.
Listen
Project Zegel at the Venice Biennale.
This is some text inside of a div block.
1
5
7
12
No items found.
0:00
3:42
As a model, Zegel was part of the exhibition 'Composite Presence'. This took place in the Belgian Pavilion at the 2021 Architecture Biennale in Venice.
As a model, Zegel was part of the exhibition 'Composite Presence'. This took place in the Belgian Pavilion at the 2021 Architecture Biennale in Venice.
