City Council Education Service, Antwerp (B).

Futureproof refit.

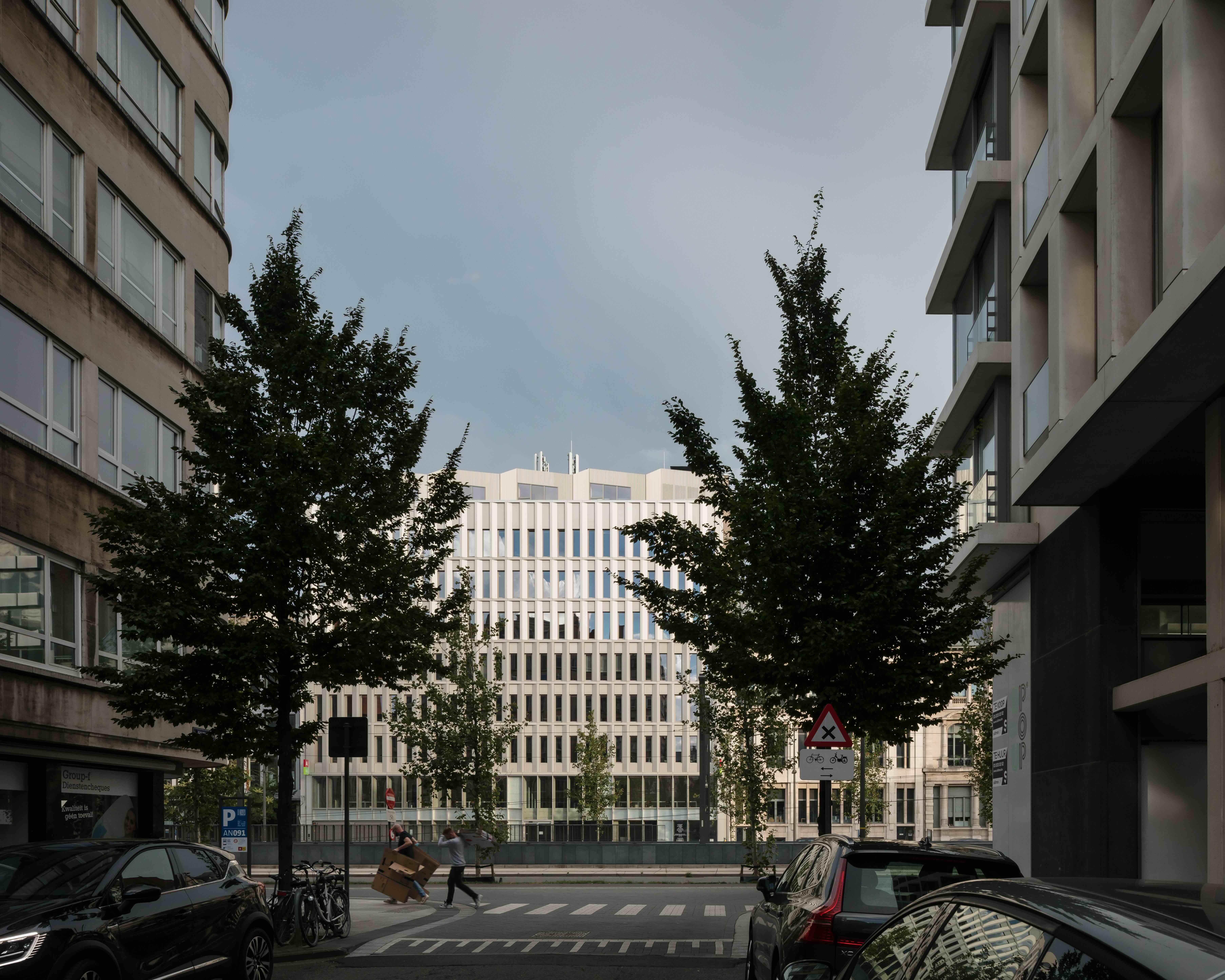

Thanks to its central position on the Leien – the inner ring road – the building for the headquarters of the City Council Education Service is located beside one of Antwerp’s core urban traffic arteries, where various public buildings are located. The design, which comprises the complete reconversion of an existing 1970s officeblock, seeks to connect – despite the anomalous morphology of the existing structure – with the historic buildings along the Leien. This is achieved via a subtle three-part intervention – plinth, middle section and crown – and an intermediate cornice that matches the height of the adjoining buildings.

The building has a public floor with a reception area, learning centre and cafeteria. Together with the offices and the meeting centre, these unite the various different divisions of the City Council Education Service.  The renovation comprises a series of clear interventions:

The existing concrete shell was retained and combined with a new, sustainable facade constructed from prefabricated wooden infill elements (in line with NZE norms) that were clad in lightweight anodised folded aluminium. The cladding is the same shade as the historic buildings in natural stone;

Flexible floorplans around a central core, in line with the ‘New Way of Working’;

The greening and partial clearance of the inner area with a new roof garden above the existing car park;

A new superstructure on the roof, constructed from CLT, with public meeting rooms that allow optimal enjoyment of the view.

Read
more
less
Details
Open
Close
Location
Frankrijklei 71/73, Antwerp, (B).
Year
2017
 –
2020
 –
...
Size
8.100 m²
Status
Built
Team
Koen Drossaert
David Jacobs
Ibiza Roca Mosher
Awards
Photography

Stijn Bollaert, David Jacobs

Visualisation
Sofa insertion
mute
Dempen
Watch
Listen
This is some text inside of a div block.
9
12
No items found.
0:00
3:42
The design, which comprises the complete reconversion of an existing 1970s officeblock, seeks to connect – despite the anomalous morphology of the existing structure – with the historic buildings along the Leien.
The design, which comprises the complete reconversion of an existing 1970s officeblock, seeks to connect – despite the anomalous morphology of the existing structure – with the historic buildings along the Leien.
5
7
0:00
3:42
Thanks to its central position on the Leien – the inner ring road – the building is located beside one of Antwerp’s core structural urban traffic arteries.
SOFA-1
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
6
No items found.
0:00
3:42
The new facade takes over the rhythm of the slender concrete pillars behind it. In addition, a 3-section with a base, a middle section and a crown has been introduced.
The new facade takes over the rhythm of the slender concrete pillars behind it. In addition, a 3-section with a base, a middle section and a crown has been introduced.
8
9
0:00
3:42
SOFA-19
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
6
No items found.
0:00
3:42
An intermediate cornice takes over the height of the neighboring buildings.
An intermediate cornice takes over the height of the neighboring buildings.
8
12
0:00
3:42
The new facade consists of prefabricated wooden elements that are placed between the concrete pillars. These were subsequently covered with sophisticated, detailed pleats.
SOFA-21
mute
Dempen
Watch
Listen
This is some text inside of a div block.
8
11
No items found.
0:00
3:42
2
5
0:00
3:42
This circularly built skin contributes to the realization of a BEN building.
SOFA-2
mute
Dempen
Watch
Listen
This is some text inside of a div block.
9
10
No items found.
0:00
3:42
The original situation of the rear facade and the inner area.
The original situation of the rear facade and the inner area.
2
7
0:00
3:42
The inner area is partially pitted and makes way for a low volume with car and bicycle parking, a patio between the stables and the main building, and a roof garden in relation to the refectory.
SOFA-17
mute
Dempen
Watch
Listen
This is some text inside of a div block.
6
11
Groundfloor plan
First floor plan
Eight floor plan
Type plan
Section
No items found.
0:00
3:42
1
4
0:00
3:42
The new rear facade and roof garden.
SOFA-3
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
6
No items found.
0:00
3:42
8
10

The interiors are created in a palette of robust but finely detailed materials. They focus on flexibility in use.

0:00
3:42
SOFA-5
mute
Dempen
Watch
Listen
This is some text inside of a div block.
3
7
No items found.
0:00
3:42
9
12
0:00
3:42
SOFA-10
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
3
No items found.
0:00
3:42
5
11
0:00
3:42
The interiors are mainly determined by the rhythm of the existing structure and the combination of the blasted concrete and the wood of the infill in the facades.
SOFA-20
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
7

No items found.
0:00
3:42
9
12

“The choice of colors and materials played a crucial role in bringing this project to life. By combining natural, sustainable materials with modern technologies, we found a harmonious balance between aesthetics and functionality that the user experiences immediately.”
- Atelier Dialect.

0:00
3:42
SOFA-13
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
5
No items found.
0:00
3:42
The technical installations are integrated between theconcrete TT beams in a demountable manner. This is part of the overall circular design of the project.
The technical installations are integrated between theconcrete TT beams in a demountable manner. This is part of the overall circular design of the project.
8
11
0:00
3:42
SOFA-15
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
4
No items found.
0:00
3:42
7
11
0:00
3:42
SOFA-16
mute
Dempen
Watch
Listen
This is some text inside of a div block.
5
10
No items found.
0:00
3:42
1
3

“The collaboration within the design team gave us the space to develop our ideas to their full potential. With the right balance between creative freedom and expert guidance, we have created a project that is both aesthetically and functionally strong.” - Atelier Dialect

0:00
3:42
SOFA-17B
mute
Dempen
Watch
Listen
This is some text inside of a div block.
2
5
No items found.
0:00
3:42
The existing staircases were demolished and replaced by stairs that comply with current fire legislation. The remaining concrete walls of the stairwells were gently sandblasted.
The existing staircases were demolished and replaced by stairs that comply with current fire legislation. The remaining concrete walls of the stairwells were gently sandblasted.
8
12
0:00
3:42
SOFA-8
mute
Dempen
Watch
Listen
This is some text inside of a div block.
1
6
No items found.
0:00
3:42
8
11
0:00
3:42
The rooftop conference center was built from CLT to limit the loads on the underlying, existing structure.
SOFA-18
mute
Dempen
Watch
Listen
This is some text inside of a div block.
7
12
No items found.
0:00
3:42
5
6
0:00
3:42
Sketch of the corners and edges of the roof pavilion cladding.
